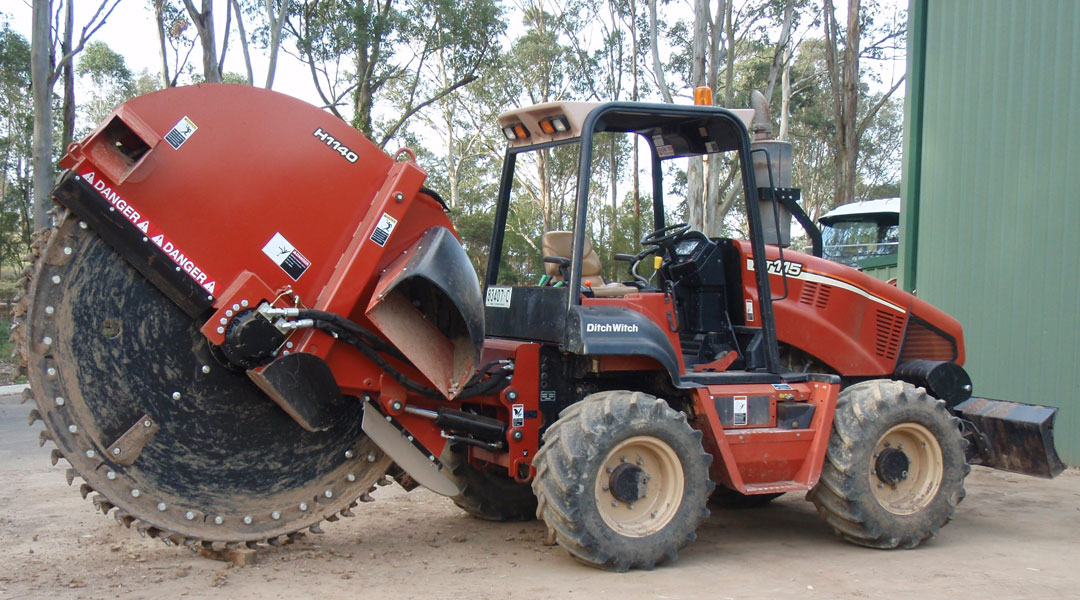

Ditch Witch Rock Saws

Rock sawing offers precision excavation that is fast, efficient and cost effective.





RockSaw-02

SPECIFICATIONS

Horsepower: 115
Steering: 4 wheel steer
Tilt: 7 degrees to the left of centre of machine
Drive Train: 4 wheel drive with diff locks
Machine Weight: 8000kgs
Machine Length: 7300mm
Machine Width: 2100mm
Machine Height: 2800mm
Trench Depth: Up to 900mm
Trench Widths: 150mm
Attachments: Adjustable dirt bags
Spoil Placement: Distributed evenely on both sides

RockSaw-Specs

 RockSaw-03

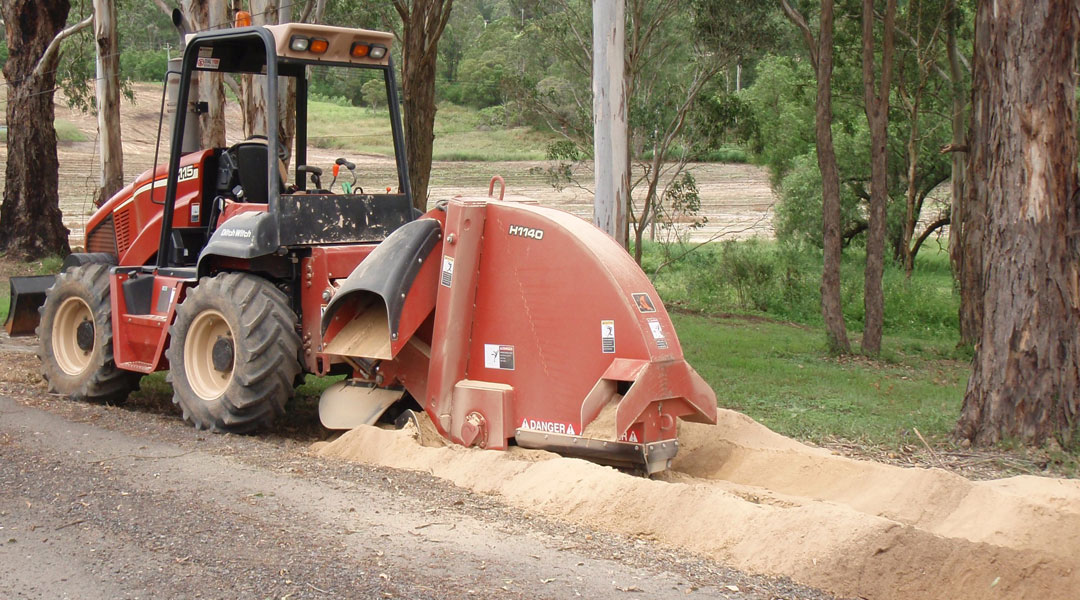

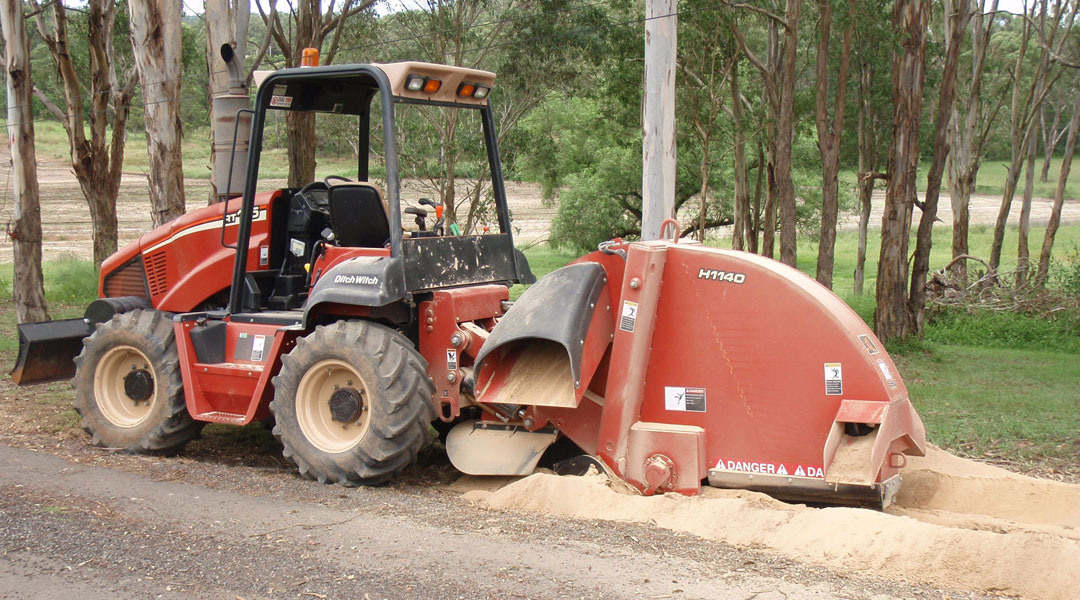

The Benefits of Rock Sawing

  • Precision excavation, no need to over excavate.
  • Excavated material is suitable for bedding of pipes/conduit, as excavated spoil can be reused there is no need to import sand or remove excavated rock.
  • Fast, efficient and cost effective.
